In the production processes of plastic extrusion, injection molding, pelletizing, etc., the heating system determines the factory's energy consumption and the texture of the products. The traditional resistance heating method has slow heat transfer, large temperature fluctuations, and it is difficult to control the cold and hot spots of the raw material barrel. There are always bottlenecks in production speed and product stability. On the other hand, with the emergence of modern induction heaters, it has become possible to achieve temperature uniformity, rapid temperature rise, and energy - saving efficiency, making it a key technology for the competitiveness of the new generation of plastic processing machines.

In this article, we will deeply analyze why induction heating has a fast temperature rise, why the temperature difference is small, and why it is energy - saving. We will clarify the technical logic behind it from the design structure and heat conduction path.

1. The core reason why induction heating has a fast temperature rise

The traditional resistance wire goes through the process of "first heating the coil, exchanging heat with the raw material barrel, and then transferring it to the raw material", so energy is lost step by step. On the contrary, induction heating directly generates heat inside the ferromagnetic raw material barrel, eliminating the need for a heat - conduction transition period. Therefore, the temperature rise speed is fast, and the energy utilization rate is high.

The key design for fast temperature rise:

The magnetic field directly acts on the inside of the metal raw material barrel for heating.

The conversion path from electrical energy to thermal energy is short and efficient.

Heat diffuses from the inside to the outside and quickly reaches the set temperature.

There is no need for long - time preheating, the startup response is fast, and the loss at shutdown is small.

To put it simply:

The traditional method "heats from the outside", while electromagnetic heating "generates heat from the inside".

A shorter path means an improved speed.

According to actual measurement data, under the same conditions, the temperature rise speed of electromagnetic heating is increased by 40% - 200%, and the production efficiency is significantly improved.

2. More uniform temperature and no temperature unevenness

The most feared thing in the plastic melting process is temperature fluctuations. Large fluctuations will cause the following problems:

The discharge speed of the material becomes irregular.

Gelation is incomplete, and the particles become non - uniform.

The product dimensions are deformed, and the gloss deteriorates.

Carbonized material adheres, making it difficult to clean the machine.

Since electromagnetic heating generates heat inside, the heat - receiving depth of the raw material barrel becomes more uniform. By combining with the PID temperature control system to achieve immediate feedback, the temperature control deviation can be stabilized within the range of ±1°C - ±3°C. In contrast, the temperature control fluctuation of the resistance wire can usually reach more than ±5°C.

The source of temperature uniformity:

Heat "simultaneously generates" on the entire wall of the raw material barrel, and the distribution becomes more linear.

The PID intelligent temperature control adjusts the output power in real - time.

There is no overheating in small areas like linear heating.

The heat - preservation efficiency at high temperatures is high, and the heat loss is low.

Temperature stability means product stability, production volume stability, and a reduction in waste, and profits will naturally increase.

3. Detailed decomposition of the design structure of modern electromagnetic heaters

High performance results from the combination of a reasonable structure and scientific materials. A mature electromagnetic heating system generally includes the following elements:

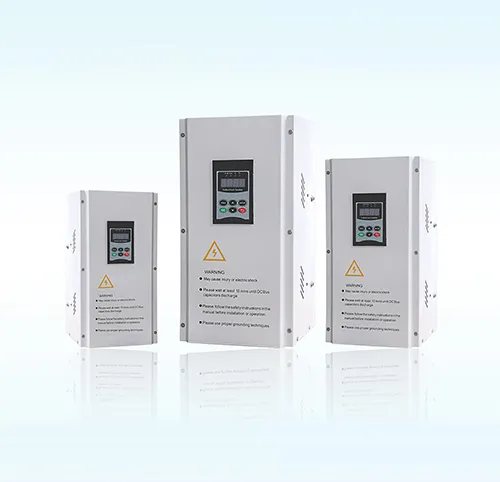

1. High - frequency inverter power supply

It converts commercial - frequency power into a high - frequency magnetic field and plays a role in driving heating efficiently.

2. High - efficiency induction coil

It is wound around the outside of the raw material barrel, with a concentrated magnetic field, low loss, and fast heat generation.

3. Nano - level heat - preservation layer

It can prevent heat loss to the outside and improve the heat - preservation rate by 2 - 4 times.

4. Intelligent temperature control system

Through signal sampling + PID algorithm, it dynamically adjusts the output and corrects the temperature difference at any time.

Each component is an indispensable element for the stability of energy efficiency.

Due to the perfect design, induction heating is not only fast but also can maintain stable performance over a long period.

4. Energy - saving = profit. The faster the thermal response, the higher the revenue

A fast temperature response is not just a technical indicator but an actual source of revenue:

Shorter startup time = several additional hours of production per day are possible.

Reduced heating loss = 30% - 70% energy savings per month are possible.

Smaller temperature difference = lower defective product rate and less waste.

Faster temperature recovery speed when changing materials = significantly shorter downtime.

If one machine produces 30 minutes more per day, an additional 15 hours of production volume can be obtained in a month.

And these production volumes were originally wasted time.

Upgrading to induction heating means turning waste into profit.

5. Which enterprises can obtain the greatest benefits after the upgrade?

In the following situations, the effect of additional installation will be more significant than usual:

Long - time operation, 24 - hour continuous production

Fields sensitive to temperature control, such as food packaging and transparent products

The materials are easily decomposed and carbonized, so stable temperature control is required

Old equipment has high power consumption and slow temperature rise

Especially in industries such as extrusion pelletizing, film blowing, spinning, and injection molding, the investment payback period is usually as short as 3 - 8 months.

In a nutshell:

Rapid temperature rise + high - precision temperature control + low heat loss

= Higher production volume + lower cost + less waste

This is the real charm of modern electromagnetic heating design.
